Cabinet Door Mounting Jig & Center Hole Positioning

Professional Cabinet Assembly & TIP-ON Installation Jig

The JNB Pro Cabinet Door Mounting Jig & Center Hole Positioner is a precision cabinet-making tool designed to simplify the installation of push-to-open (TIP-ON) hardware and ensure accurate drilling for cabinet construction applications.

Built from durable aluminum alloy, this adjustable jig allows cabinet manufacturers, woodworking professionals, and installers to accurately position and drill center holes for TIP-ON mechanisms, wood dowels, and cabinet assembly components with repeatable precision.

Ideal for custom cabinetry, frameless cabinet construction, furniture manufacturing, and production environments where accuracy and consistency are critical.

Key Features

✔ Precision center hole positioning

✔ Designed for TIP-ON / push-to-open hardware installation

✔ Accurate wood dowel drilling for cabinet assembly

✔ Adjustable depth control system

✔ Durable aluminum alloy construction

✔ Metric and imperial measurement scales

✔ Repeatable positioning for production environments

✔ Ideal for cabinet shops, woodworking professionals, and furniture manufacturers

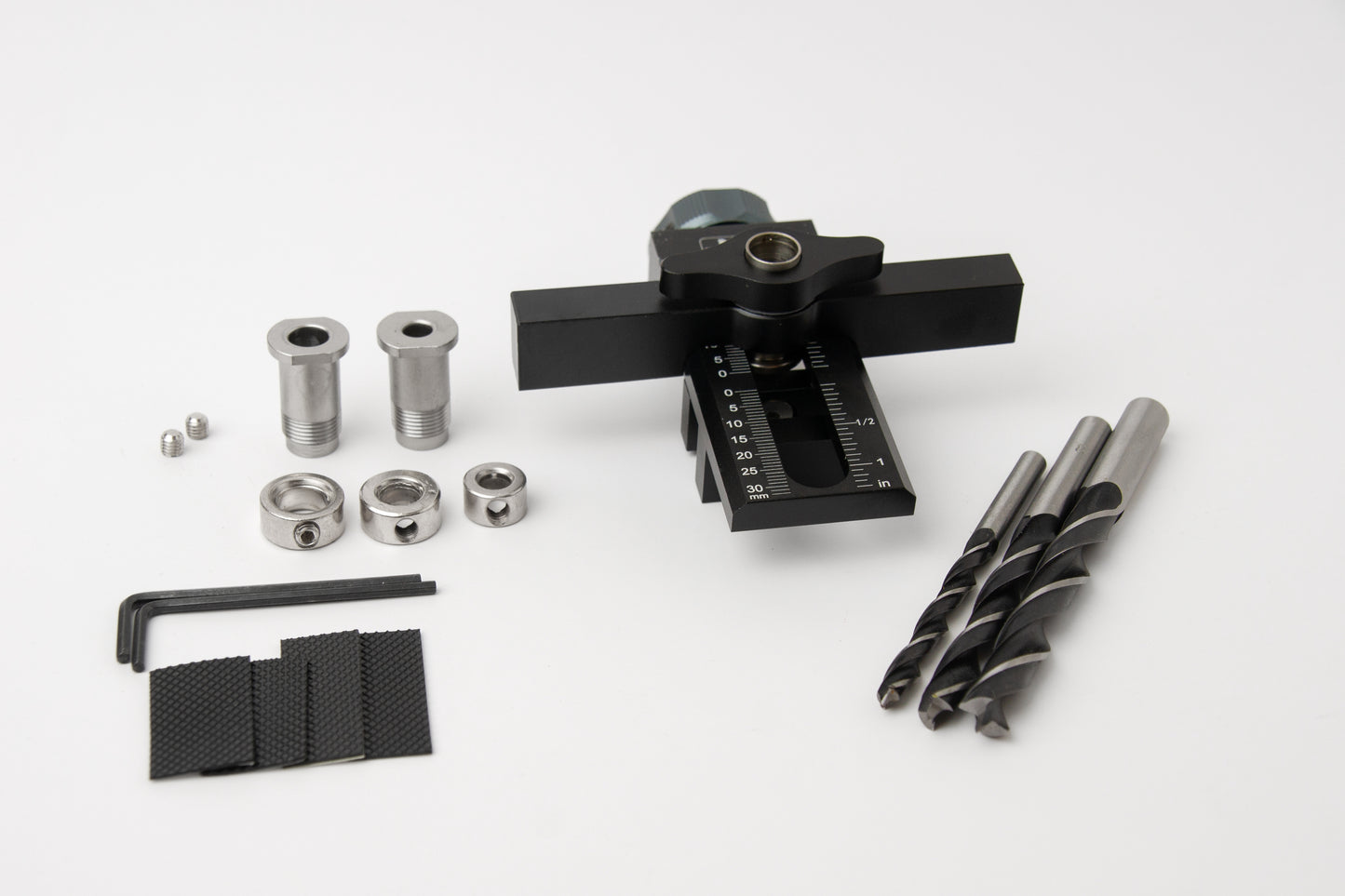

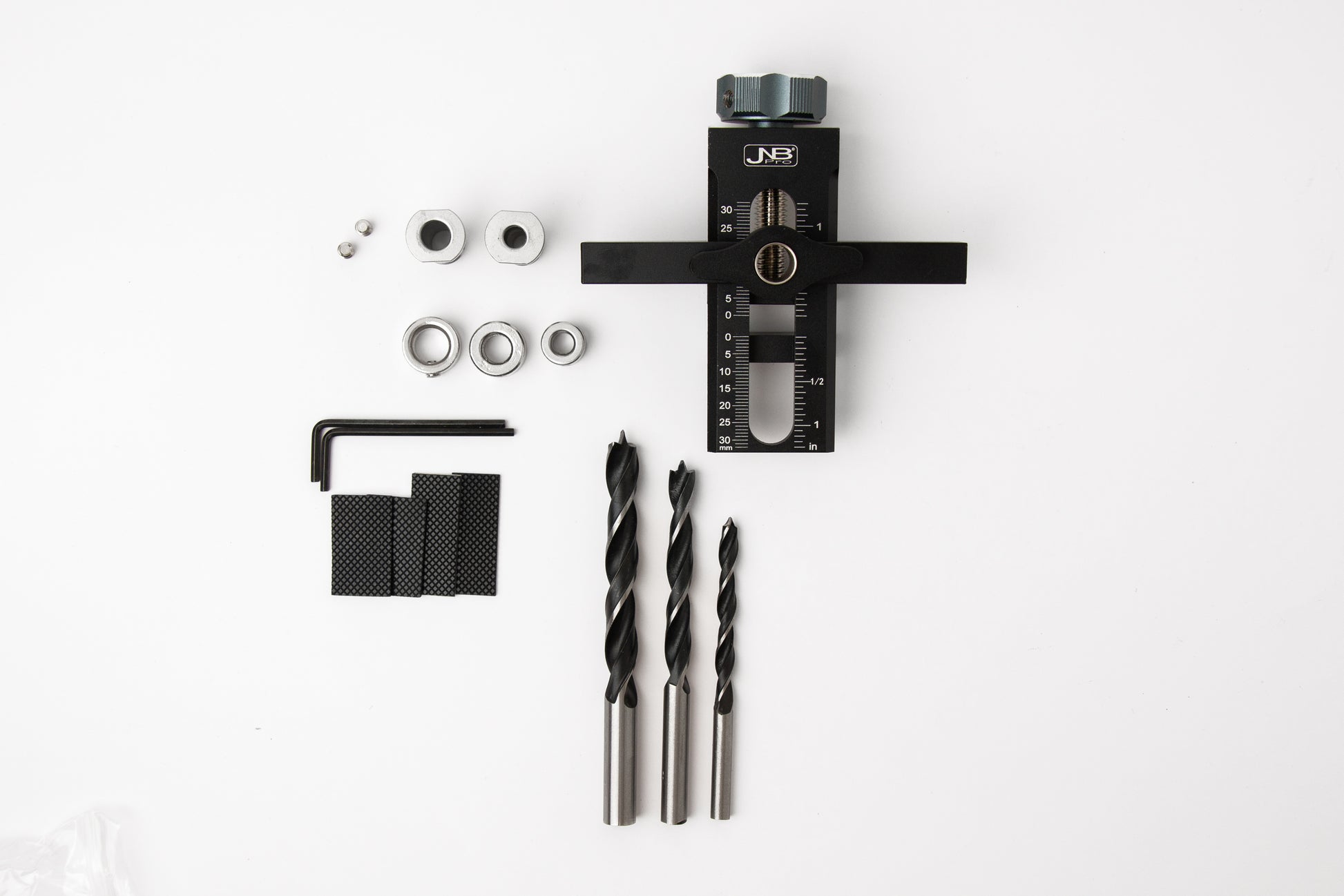

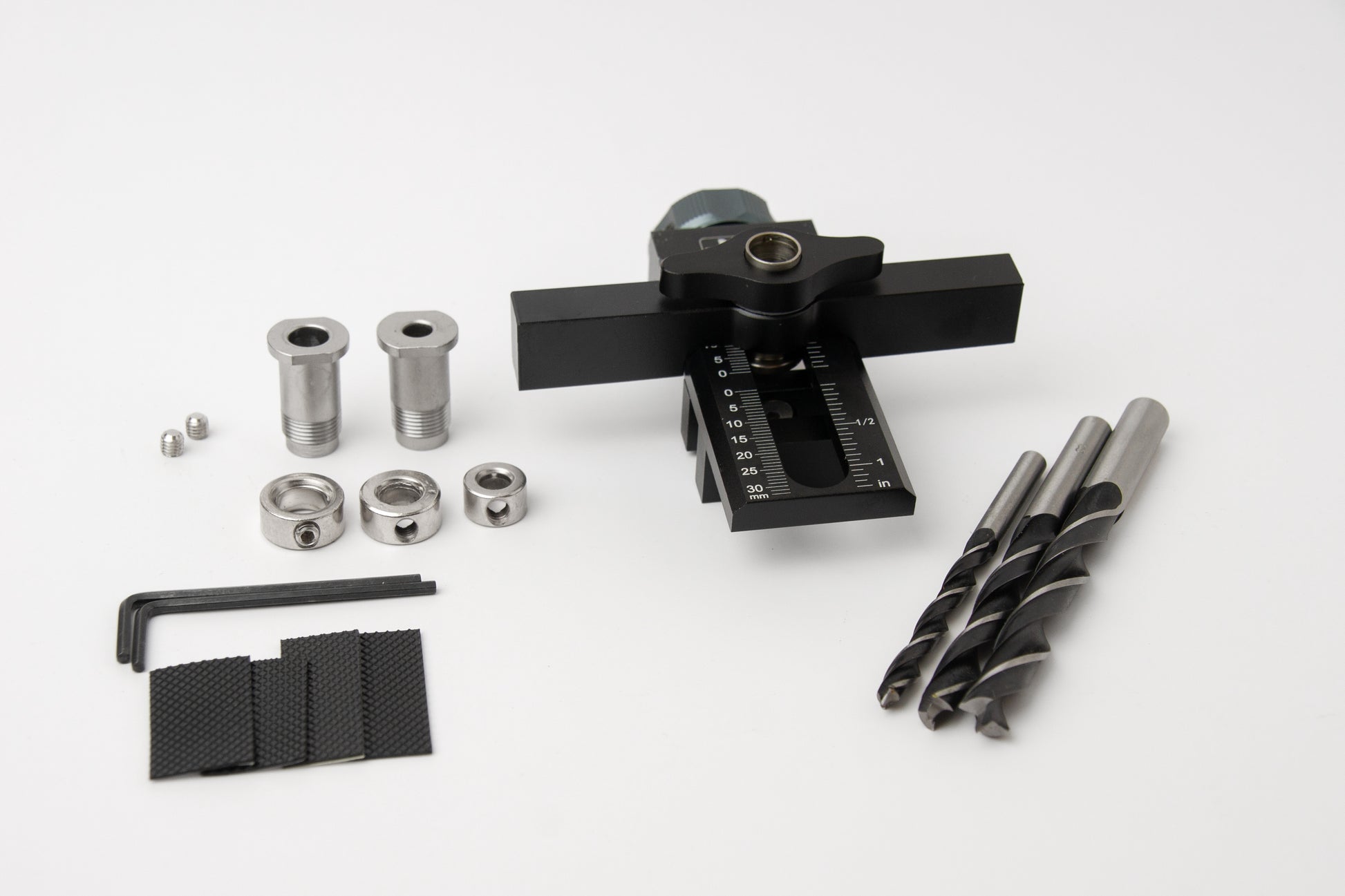

What's Included

• 1 Adjustable Aluminum Cabinet Positioning Jig
• 3 Drill Bits (6mm, 8mm, and 10mm)
• 3 Precision Drill Bushings
• 3 Adjustable Depth Stop Rings
• 2 Allen Wrenches
• Anti-Slip Pads
• Adjustment Hardware

Applications

• TIP-ON Push-to-Open Hardware Installation
• Cabinet Door Mounting
• Cabinet Frame Drilling
• Wood Dowel Hole Drilling
• Cabinet Manufacturing
• Frameless Cabinet Construction
• Furniture Assembly
• Custom Cabinet Shop Production
