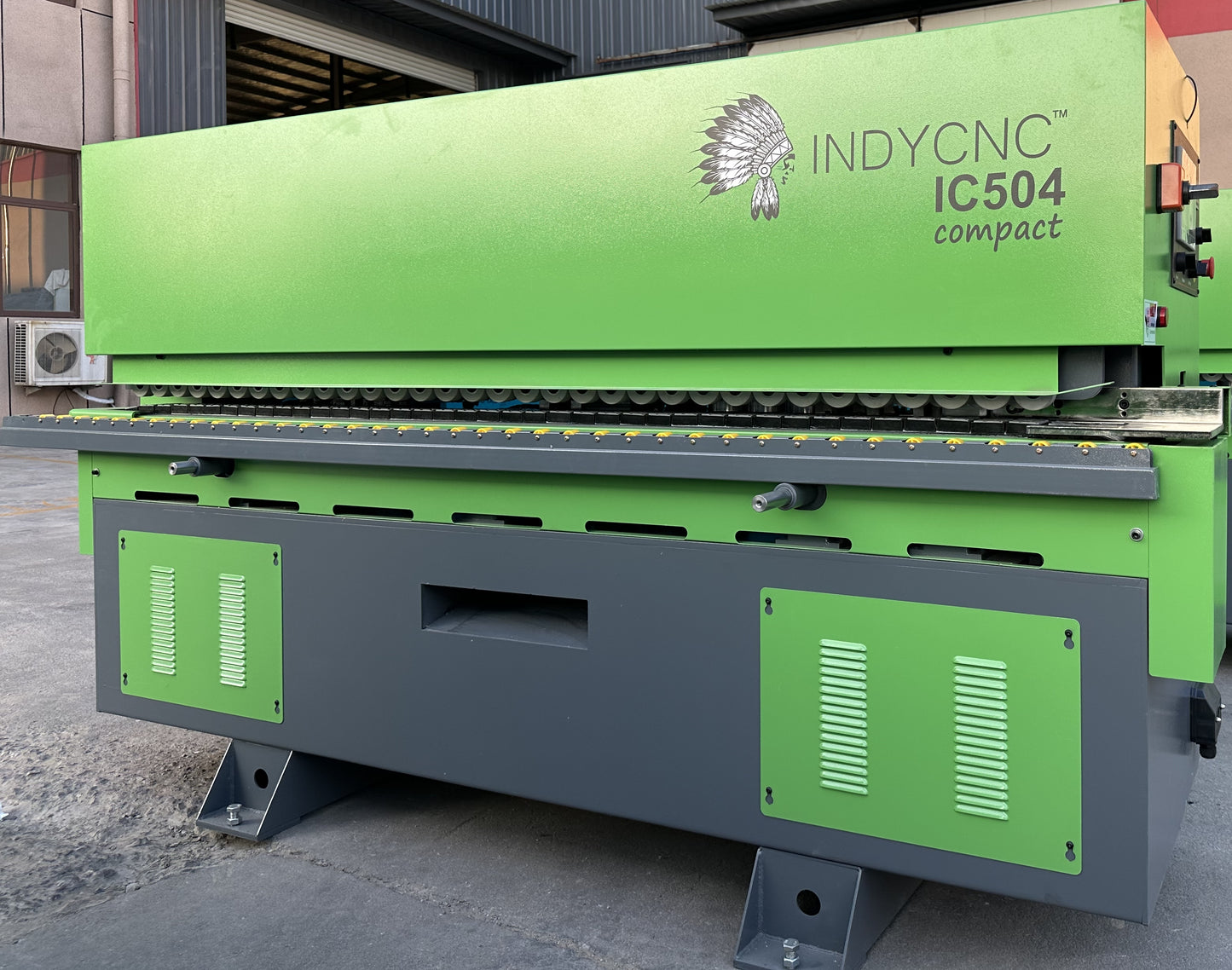

Edgebander JP504 - COMPACT

Edgebander JP504 - COMPACT

$11,500.00
$16,318.00 $11,500.00
Sale Sold out
Tax included.

We speak Portuguese and Spanish.

Brand new machines, in stock and ready to deliver.

Contact (321) 315-1410 for questions and delivery set up.

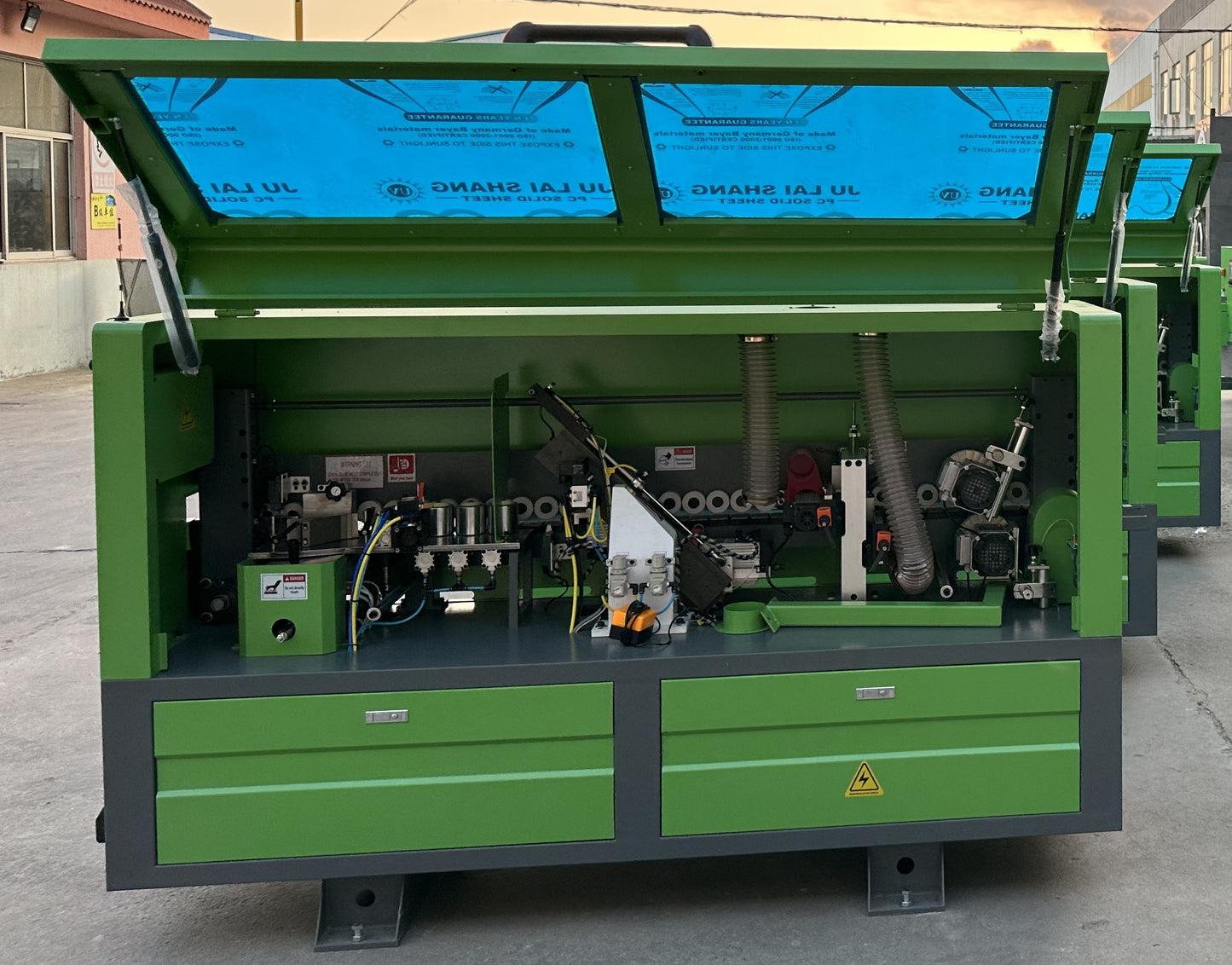

JP504-COMPACT IS OUR EDGEBANDING MACHINE ENTRY MODEL WITH:

  • GLUING

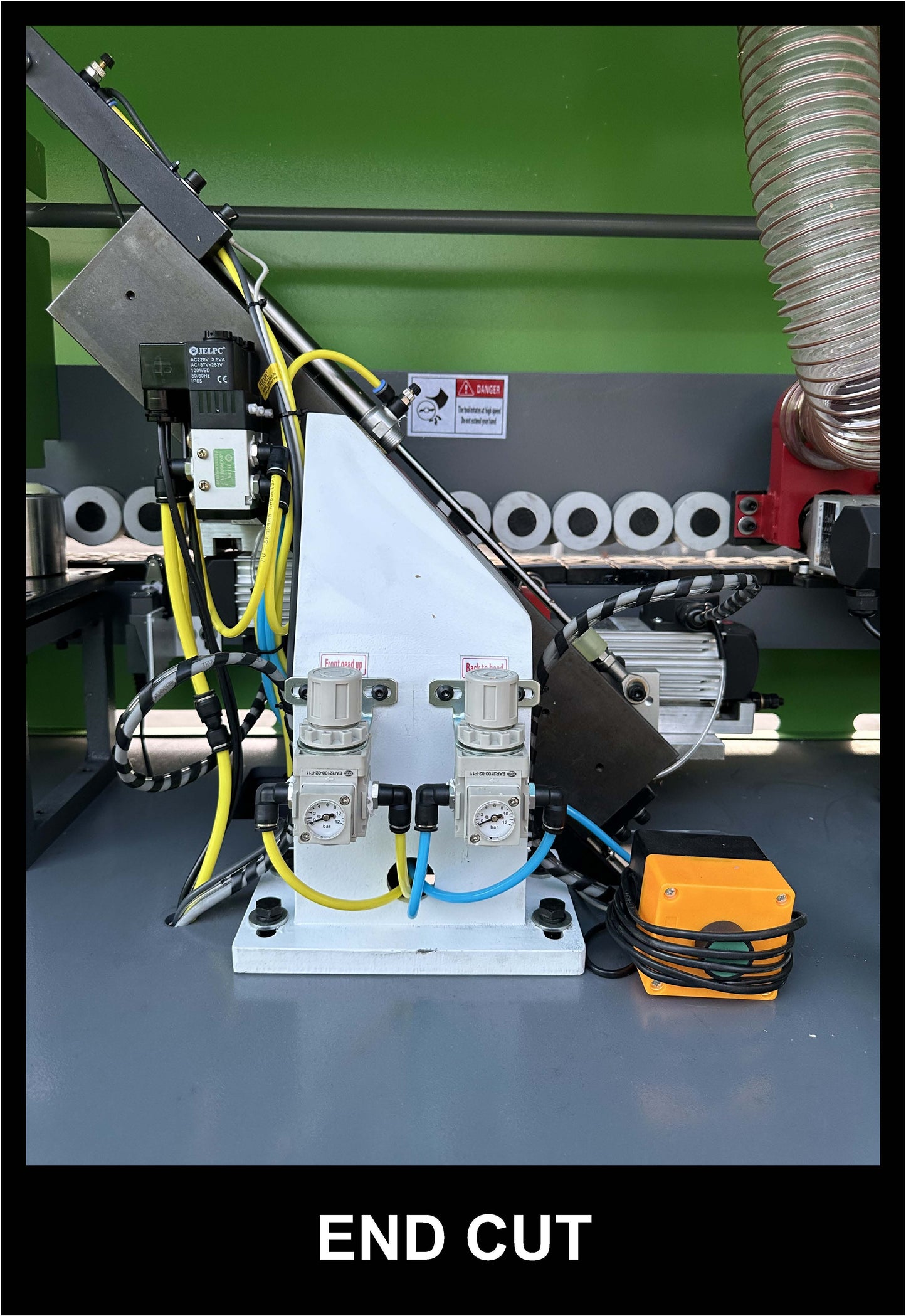

  • END CUT
  • PROFILING
  • EDGE POLISHING

COMPACT MODEL WITH ONLY 78” LENGTH, ESPECIALLY DESIGNED FOR SMALL SHOPS AND

PERFECT MODEL FOR THOSE WHO WANT TO MAKE THE MINIMUM INVESTMENT IN A SMALL EDGEBANDER WHICH HAS INDUSTRIAL ROBUSTNESS, POWER AND HIGH PRODUCTIVE CAPACITY WITH A MINIMUM OF MAINTENANCE.

Power 220/3Phase

*Sales are final

Parameters Specifications
Power source 220V/3ph
Panel length >=80mm
Panel width >=80mm
Panel thickness 10-50mm
Edgeband thickness 0.4-3mm
Feeding Speed 14m/min
Glue pot motor 0.5kw
Fine trimming motor 0.37kw x 2
Buffing motor 0.18kw x 2
Conveyor motor 1.5kw
Pneumatic pressure 0.6 mpa
Total power 4.8kw/6.5hp
Machine size 2000x740x1470*Lenght x width x height
Machine Package 2200x840x1570 *Lenght x width x height
Machine weight 752kg
Touch Screen Delta panel
PLC Delta
Trimming motor CC
Convertor WANXIN
Electron magnetic valve AIRTAC
Rolling guide CSK
Cylinder GEASUN
Conveyor motor UFC high speed motor
Electric parts Chint Electrical
Structure Aluminum Alloy pressure beam
