JNB Pro - Professional Tools
Hinge Boring Machine - JP1H
Hinge Boring Machine - JP1H
Regular price
$2,616.00
Regular price
Sale price
$2,616.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
We speak Portuguese and Spanish.
Brand new machines, in stock and ready to deliver.
Contact (321) 315-1410 for questions and delivery set up.

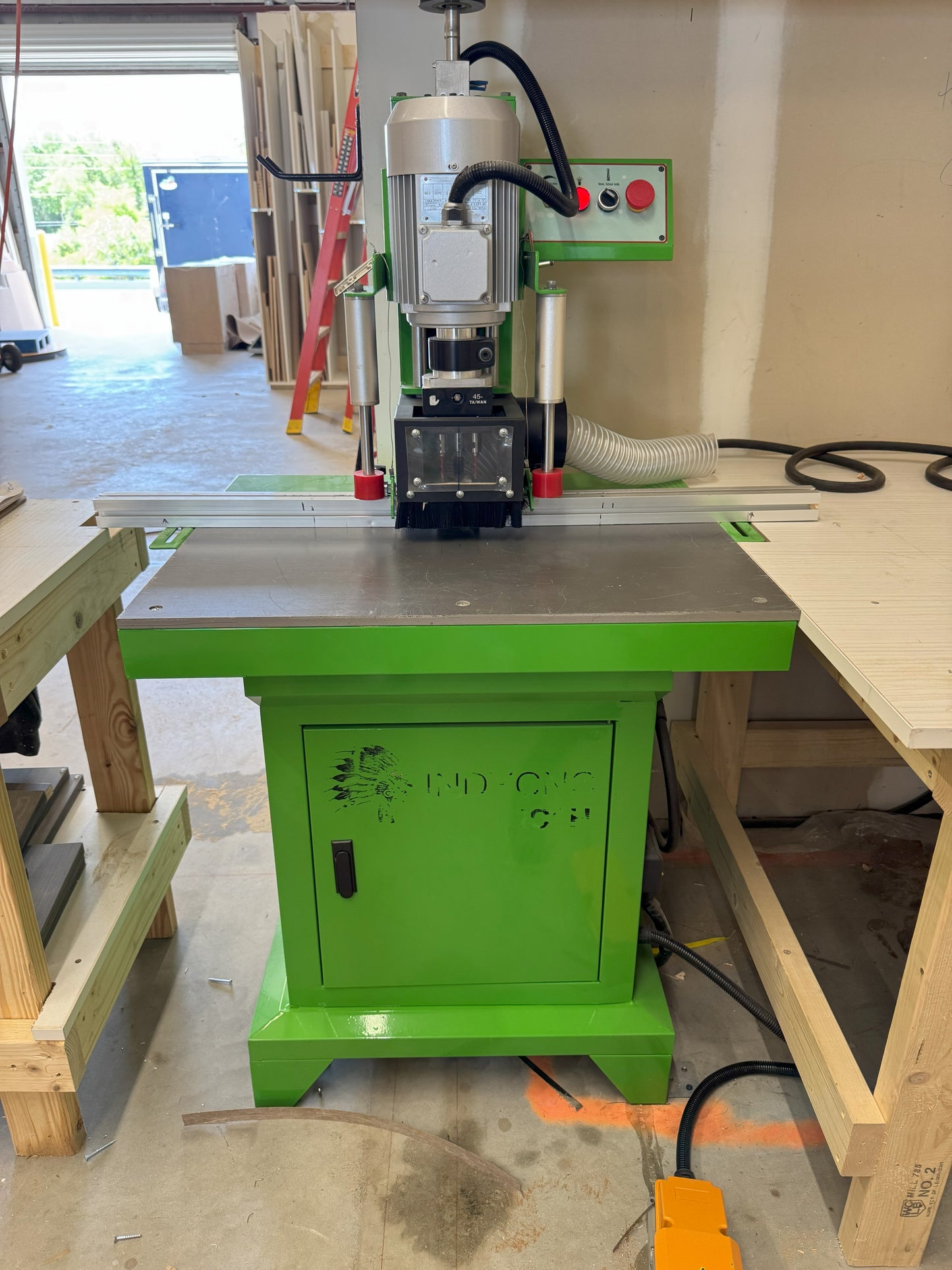

Hinge Boring Machine model JP1H Single Head with dust cover – Electric and Pneumatic – Bore hole position 45/9.5 for Blum hinges
Power 220/3Phase
*Sales are final
| Parameters | Specifications |
| Power source | 220V/3ph / 60hz |
| Max drilling diameter | 35mm |
| Max drilling depth | 50mm |
| Number of shaft | 3 (1 hinge drill shaft + 2 dowels drill shaft) |
| Rotational speed | 2880 r/min |
| Motor power | 1.5kw (2hp) |
| Machine Size | 800 x 600 x 1550mm (31” x 23-1/2” x 61”) WxDxH |
| Table size | 700 x 400mm (27-1/2” x 15-3/4”) WxD |
| Weight | 65kg (143lbs) |
| Ruler lenght | 855mm (33-1/2”) |
| Air pressure | 0.6-0.8mpa |
| Dust hose connection diameter | 100mm (4”) |
